真空拌餡機300/500/750
真空攪拌機是我公司參照國際先進同類產品，并結合我國肉制品加工工藝特點，自行研制開發的。通過合理的設計，使物料攪拌均勻、充分膨脹、無氣泡、彈性好、色澤鮮艷并更大限度的提取了蛋白質，是同類產品中的設備。
1. 整機采用304不銹鋼材料制作，堅固耐用，容易清洗。
2. 可設置真空度，真空效果好，可使物料在真空狀態下攪拌。
3. 采用平衡雙軸螺旋結構。裝有斜板槳葉及螺旋推進攪拌圈，攪拌均勻。
4. 采用可編程控制器和觸摸屏控制，設定攪拌總時間，間歇時間及攪拌程序。
型號 | 攪拌箱容積 (L) | 功率 | 攪拌軸轉速 | 外形尺寸 | 重量 |
ZBH-300 | 300 | 4.95 | 40 | 1400×900×1400 | 400 |
ZBH-500 | 500 | 6.55 | 40 | 1500×1100×1500 | 650 |
ZBH-750 | 750 | 7.1 | 40 | 1880×1060×1530 | 1300 |

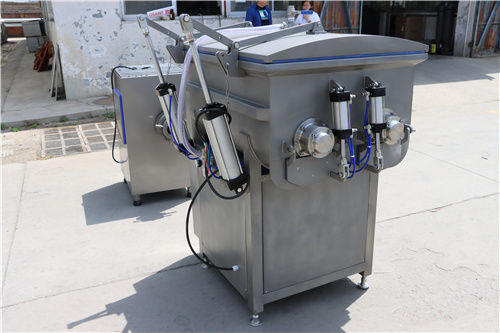

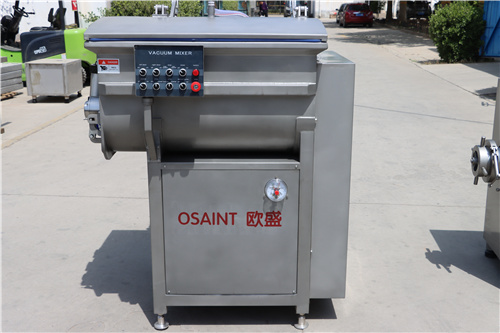

ZBH-300/500/750 VACUUM MIXER
Boan vacuum mixers mix the meat with other additives in absence of air , this can improve the retention of the color ,smell and taste ,reduce the time of
The next processing and ensure longer shelf life .
Elf-supported body made of high quality stainless steel , reliable and robust ,meet high hygienic standard .
Xcellent vacuum performance for optimal mixing results .vacuum can be
Preset as required .
Pecial paddle structure achieves an efficient and energetic mixing without any damage to the products, all the stuffs are pushed through the
Spiral boost devices which ensure uniform mixing results
Lector-mechanical or PLC control system can be selected .PLC control is
Via touch screen .Total mixing time ,interval time and various mixing type can be preset.
Model | Capacity of the material box (L) | Power(kw) | Mix speed(rpm) | Dimension(mm) | Weight(kg) |
ZBH-300 | 300 | 4.95 | 40 | 1400×900×1400 | 400 |
ZBH-500 | 500 | 6.55 | 40 | 1500×1100×1500 | 650 |
ZBH-750 | 750 | 7.1 | 40 | 1880×1060×1530 | 1300 |
